ANENG 620A 6000 Counts Digital Smart Multimeter Transistor Testers True RMS Auto Electrical Capacitance Meter Temp Resistance
ANENG 620A 6000 Counts Digital Smart Multimeter Transistor Testers True RMS Auto Electrical Capacitance Meter Temp Resistance
Couldn't load pickup availability
SPECIFICATIONS
AC Current: 6000mA/fiberglass
DC Voltage: 6V/60V/600V
Brand Name: ANENG
AC Voltage: 6V/60V/600V
Model Number: ANENG 620A
DC Current: 6000mA/fiberglass
Display Type: Digital display
Measuring Resistance Range: 600/6k/60K/600K/6m/60m
Operating Temperature: 0 - 40 ℃
Measuring Capacitance Range: 6nF/60nF/6UF/60UF/600UF/6mF/60mF
Measuring Inductance Range: 100Hz/1000Hz
Is Smart Device: No
Origin: Mainland China
Operating Mode: automatic
Certification: CE
DIY Supplies: ELECTRICAL
ANENG Model: 620A
Choice: yes

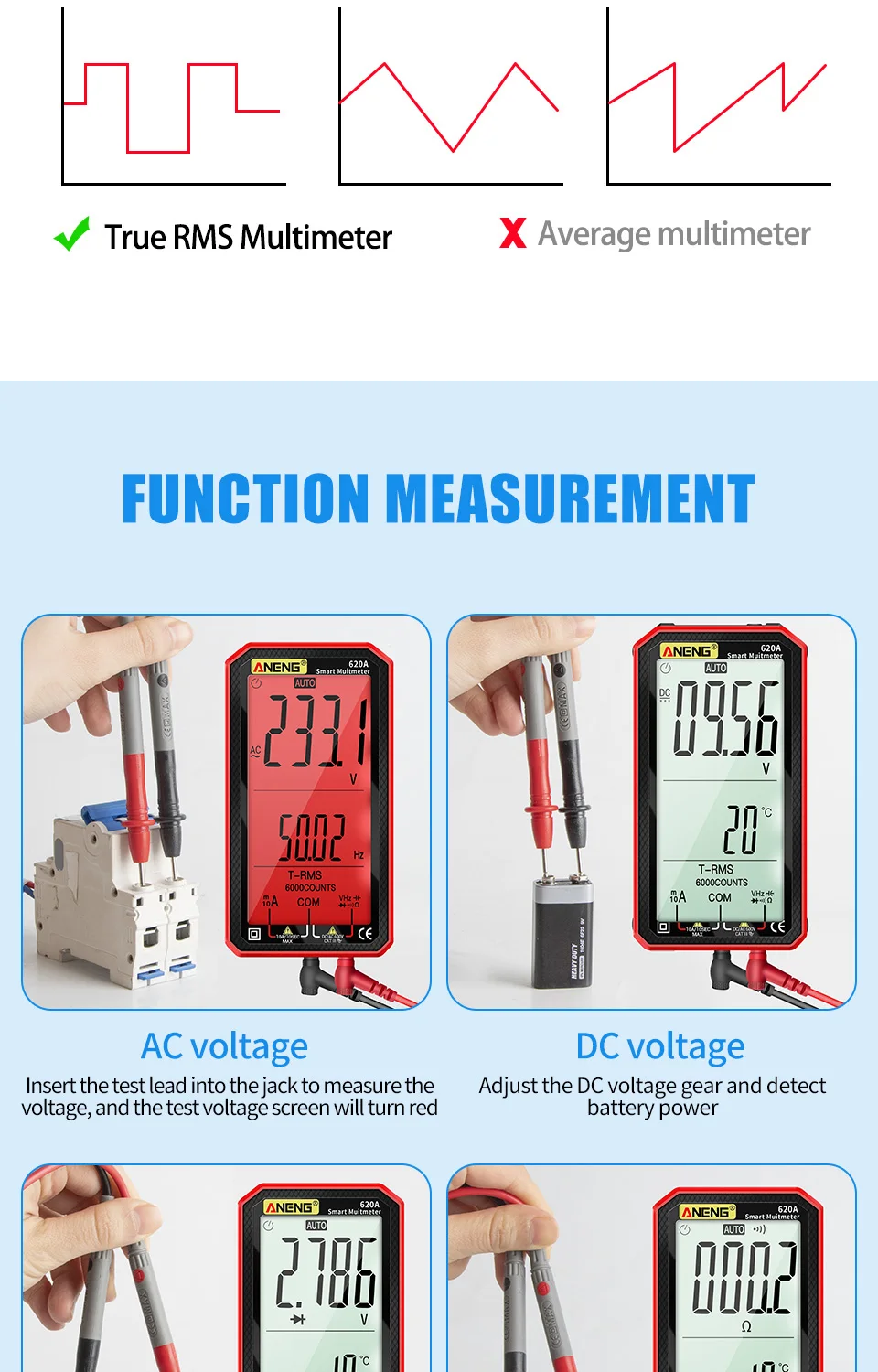

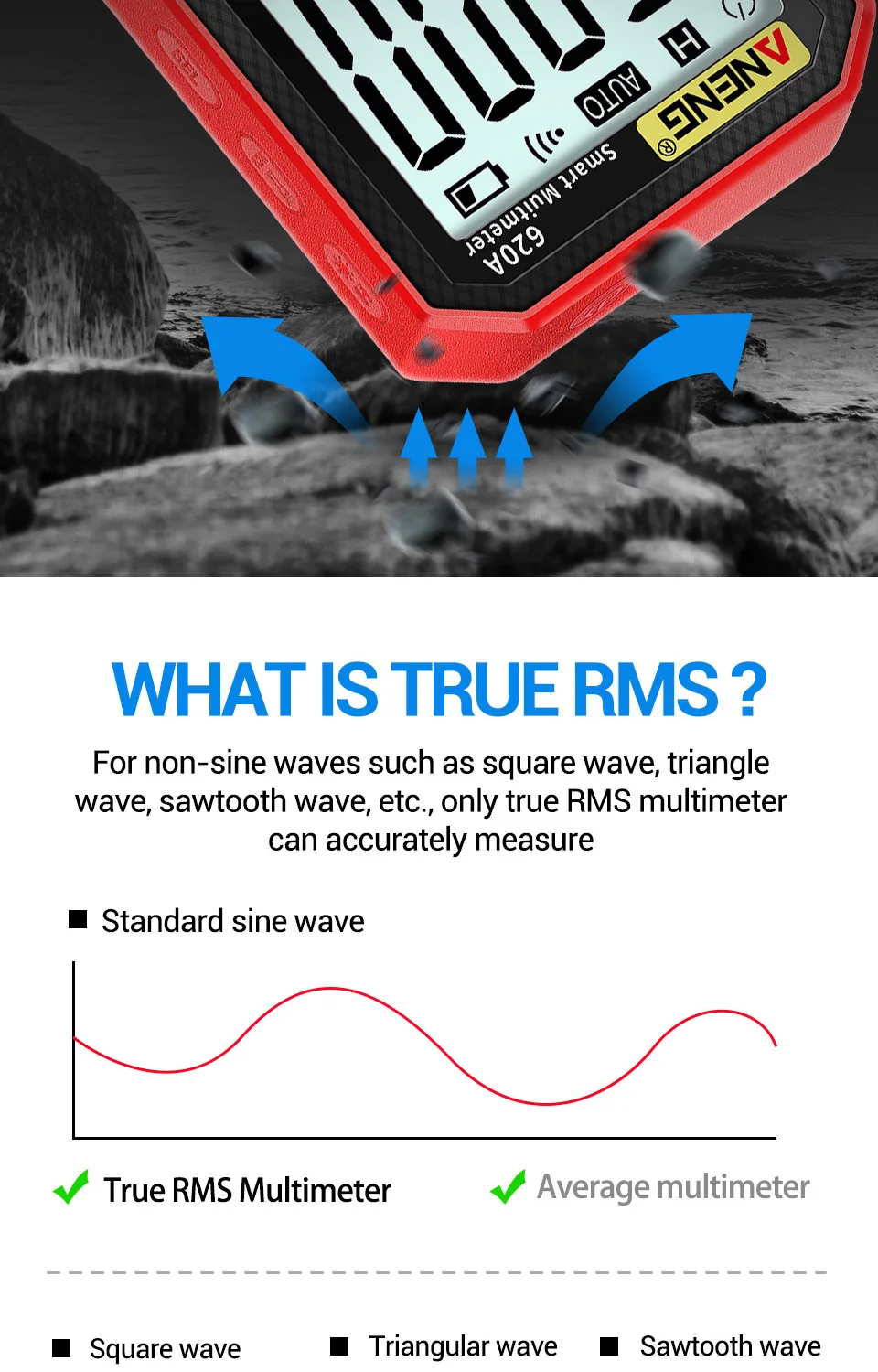

• True RMS Measurement :The ANENG 620A multimeter provides true RMS measurement, ensuring accurate readings for capacitance, resistance, and temperature.

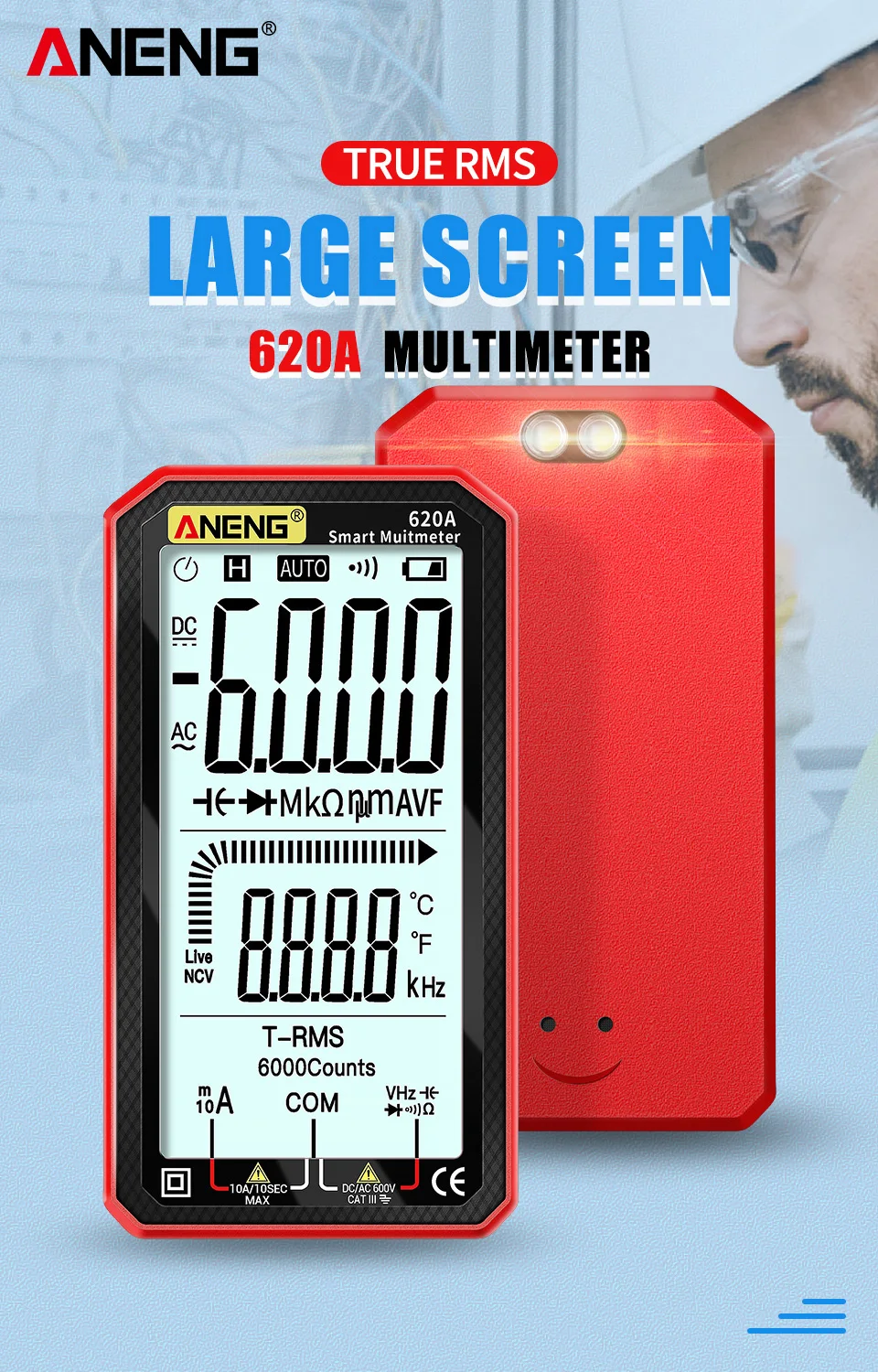

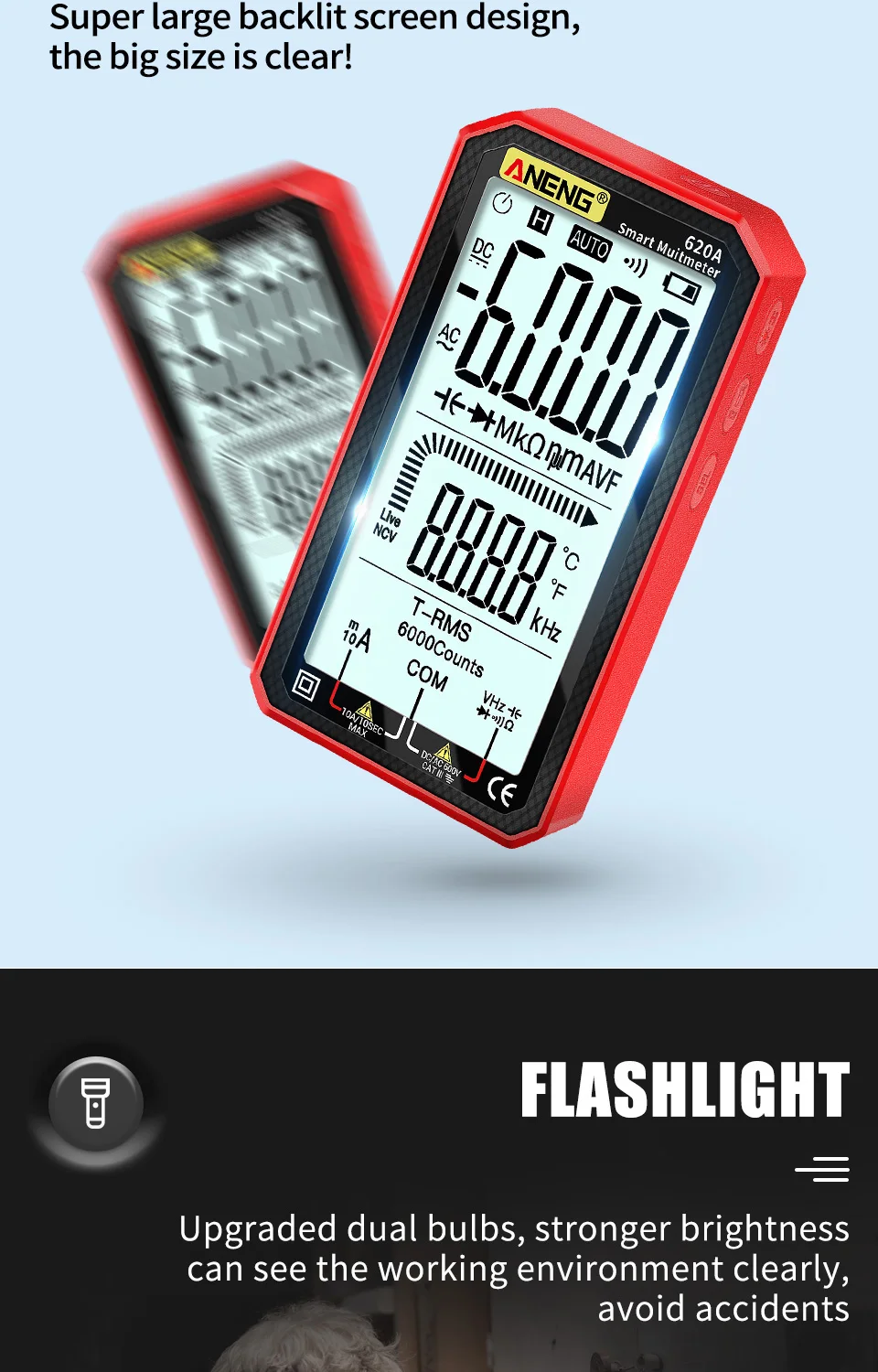

• Large Count Display :With 6000 counts, the digital display provides a large and easy-to-read count, making it simple to understand your measurements.
• Wide Operating Temperature Range :The ANENG 620A multimeter can operate in a wide temperature range of 0-40 degrees Celsius, making it suitable for use in a variety of environments.
• Automatic Testing :The multimeter is equipped with automatic testing capabilities, making it easy to test circuits and components without the need for manual intervention.
A.Overview:
Dispaly: LCD
Max. display value:6000 digit
Automatic shut down time:15 minutes
power supply:2*1.5V AAA Battery(Without)
The instrument specifies one year as a cycle,and shall be re-calibrated under 18℃~28℃,with relative humidity less than 75%.
B.Specification:
Function |
Range |
Accuracy |

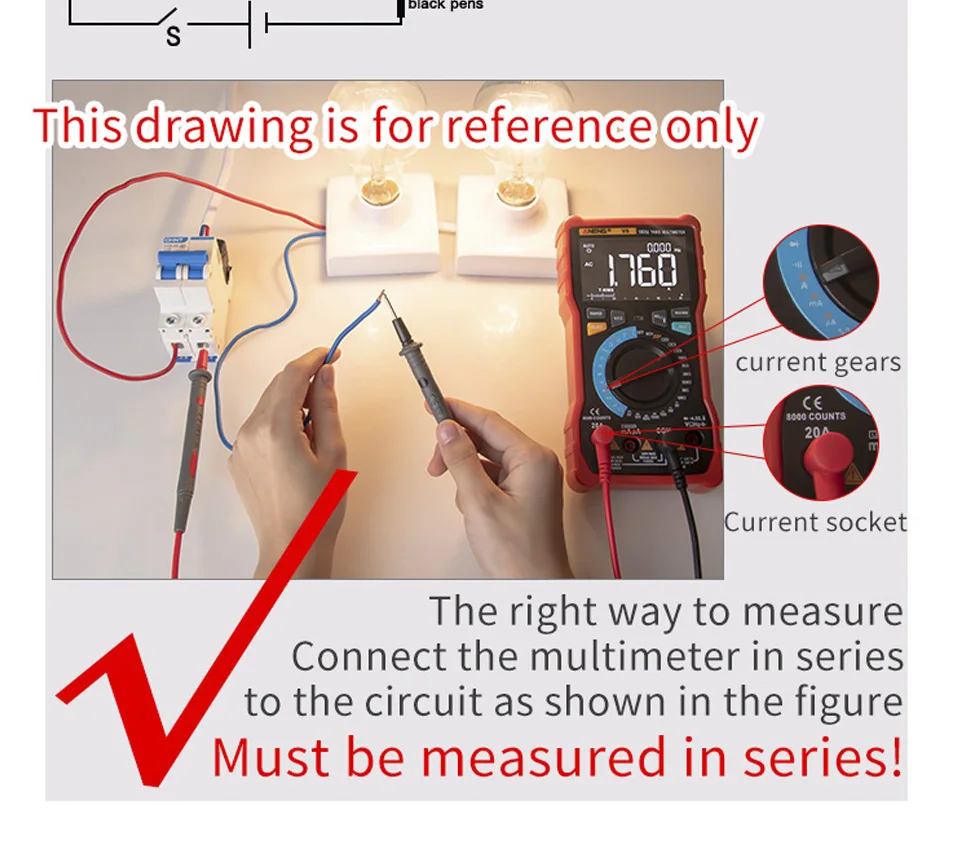

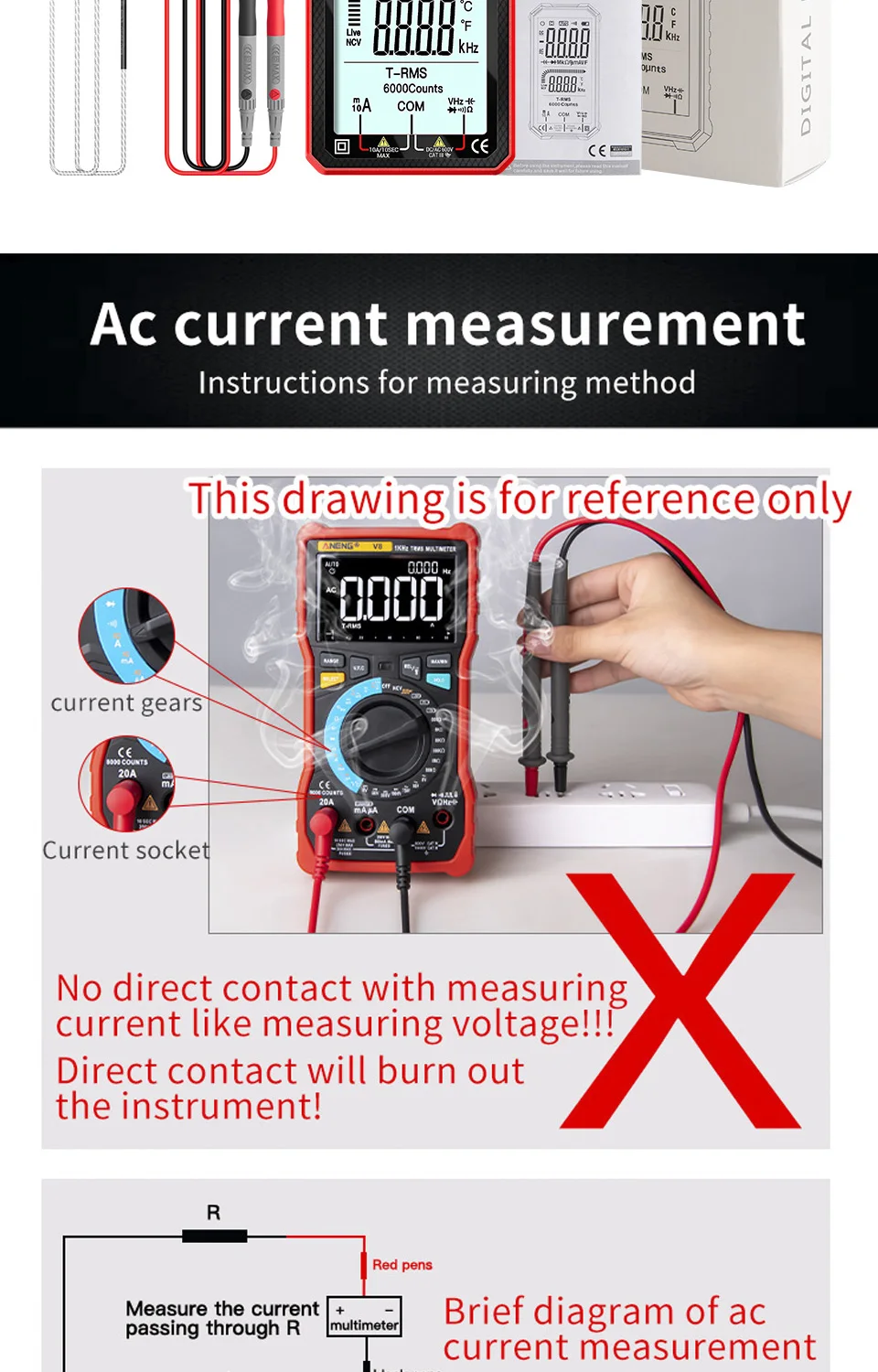

AC Current |
6000mA/10A |
+-(1.0%reading+8 digits) |
DC Current |
6000mA/10A |
+-(1.0%reading+5 digits) |
DC Voltage |
6V/60V/600V |
+-(0.5%reading+3 digits) |
AC Voltage |
6V/60V/600V |
+-(0.8%reading+5 digits) |
Line on-off Test |
-- |
1Ω |
Resistance |
600Ω/6K Ω/60K Ω/600K Ω/6M Ω/60mΩ |
+-(0.8%reading+3 digits) |
Diode Test |
-- |
1V |
Capacitor |
6nF |
+-(10%reading+40 digits) |
60nF/6uF/60uF/600uF/6mF/60mF |
+-(2.5%reading+20 digits) |
|
Temperature |
-40~1000 ℃ |
+-(1%reading+3℃) |
-40~1832Xi |
+-(1%reading+3Xi) |
|
Frequency |
100Hz/1000Hz |
+-(1.0%reading+5 digits) |
100Hz/1000Hz |
+-(1.0%reading+5 digits) |

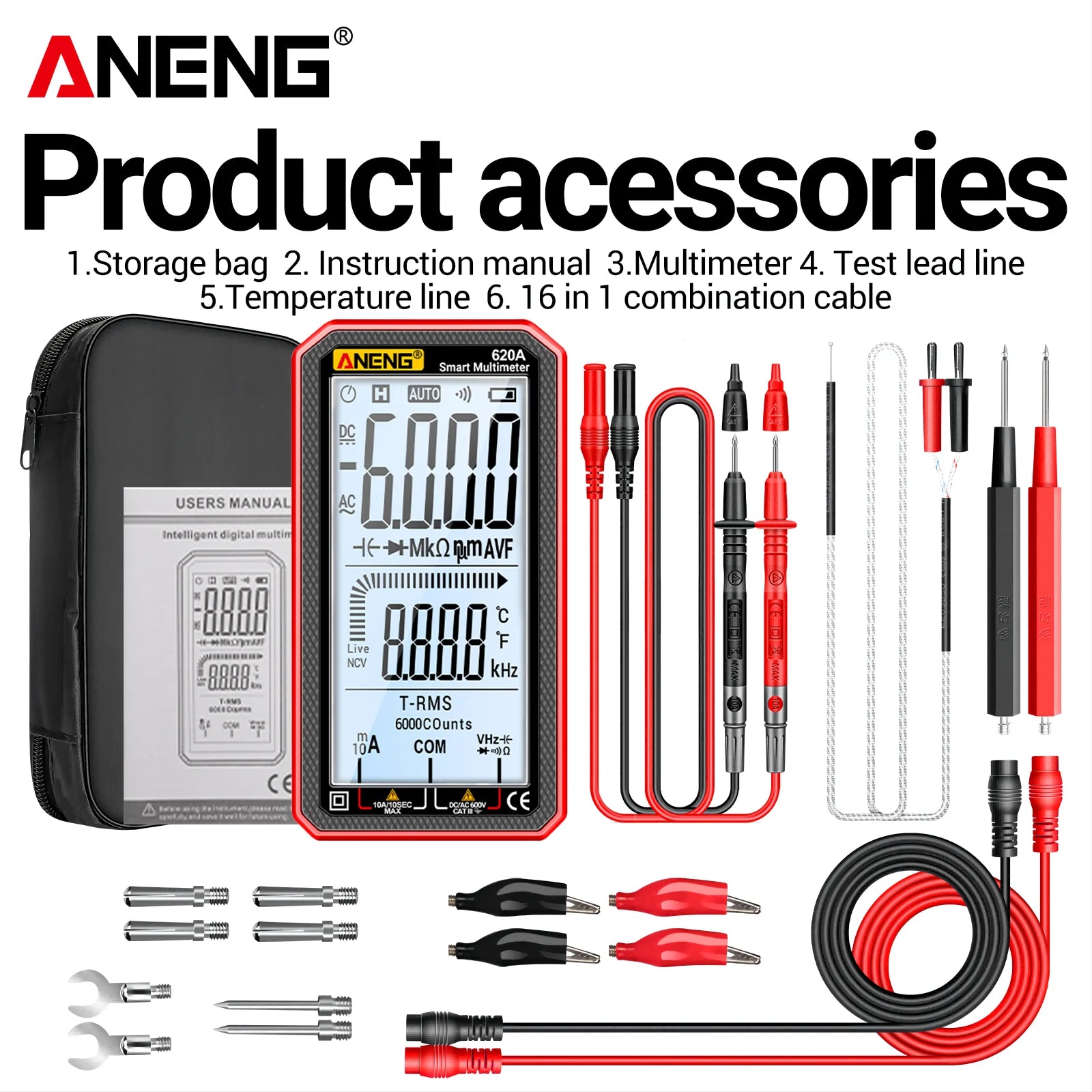

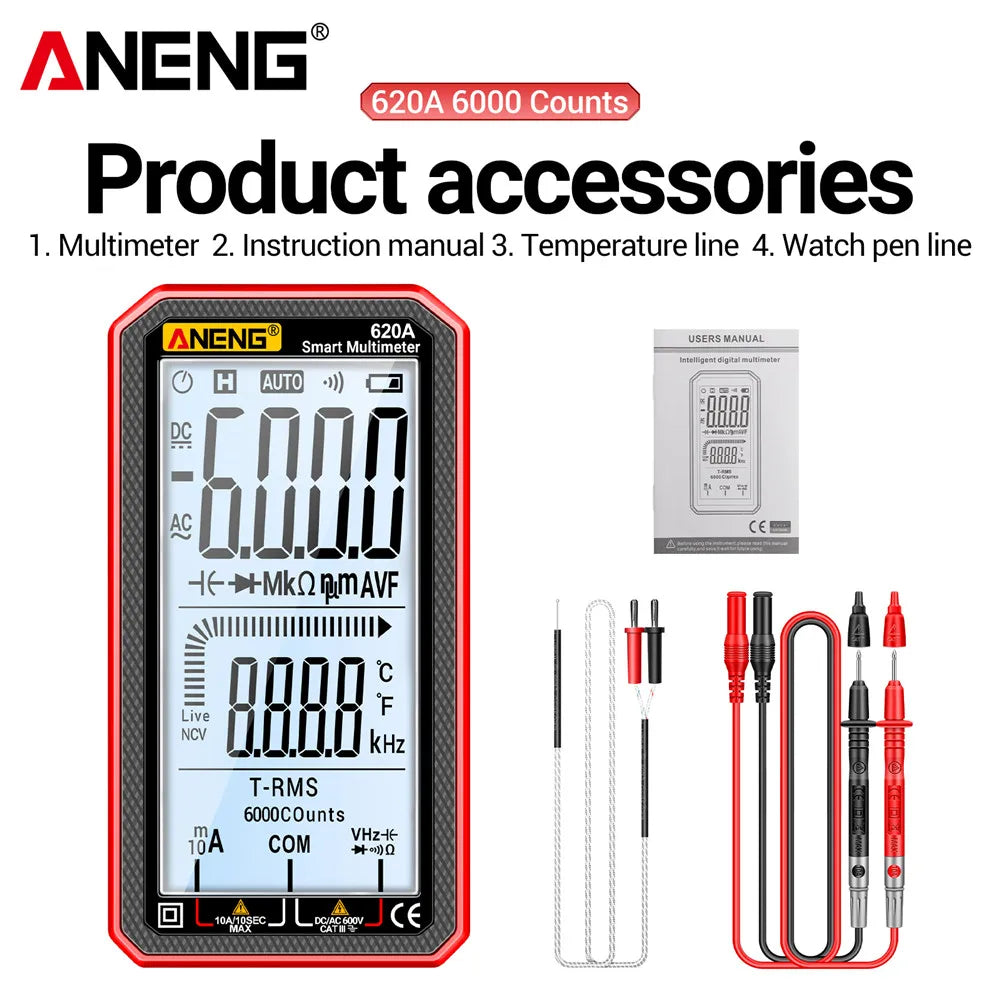

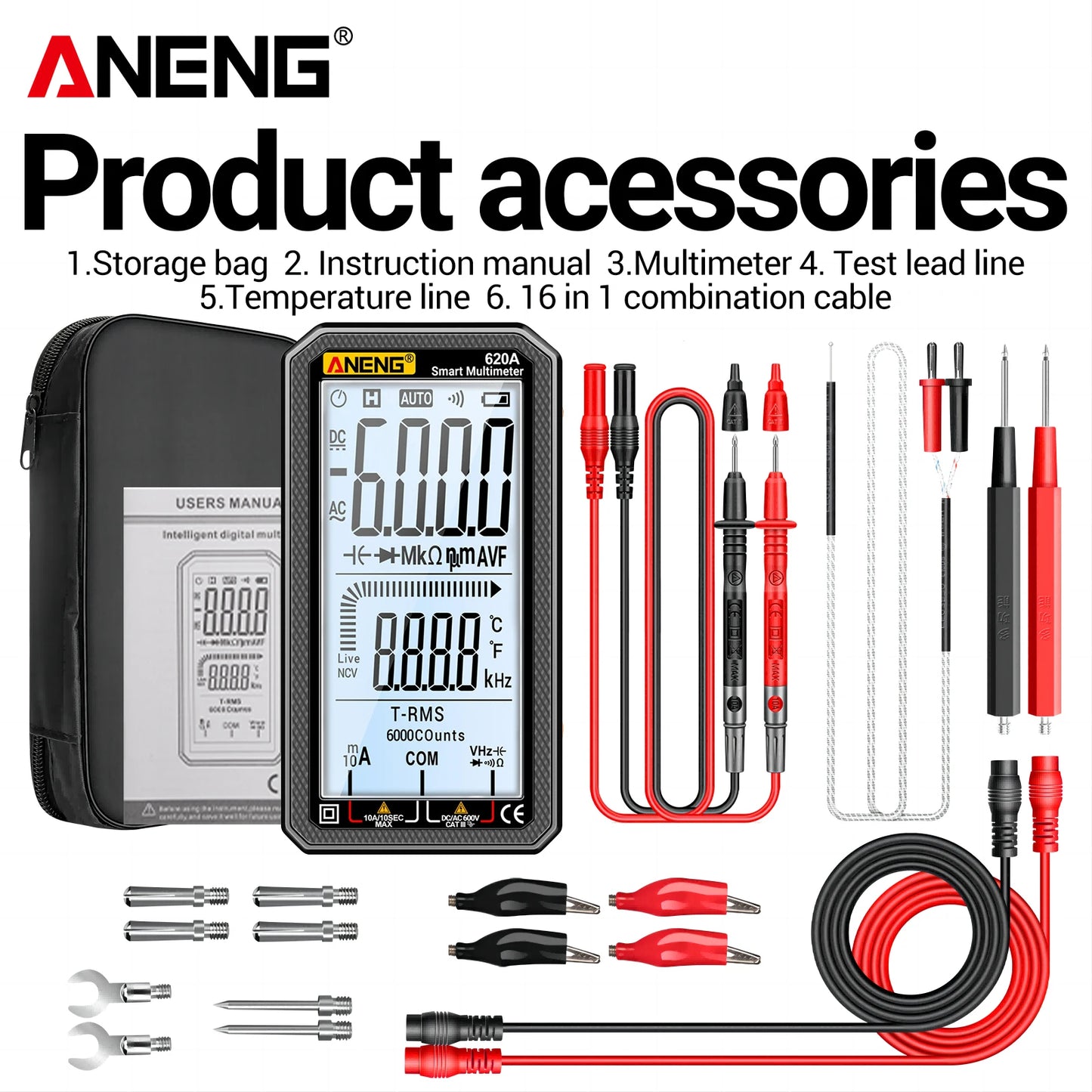

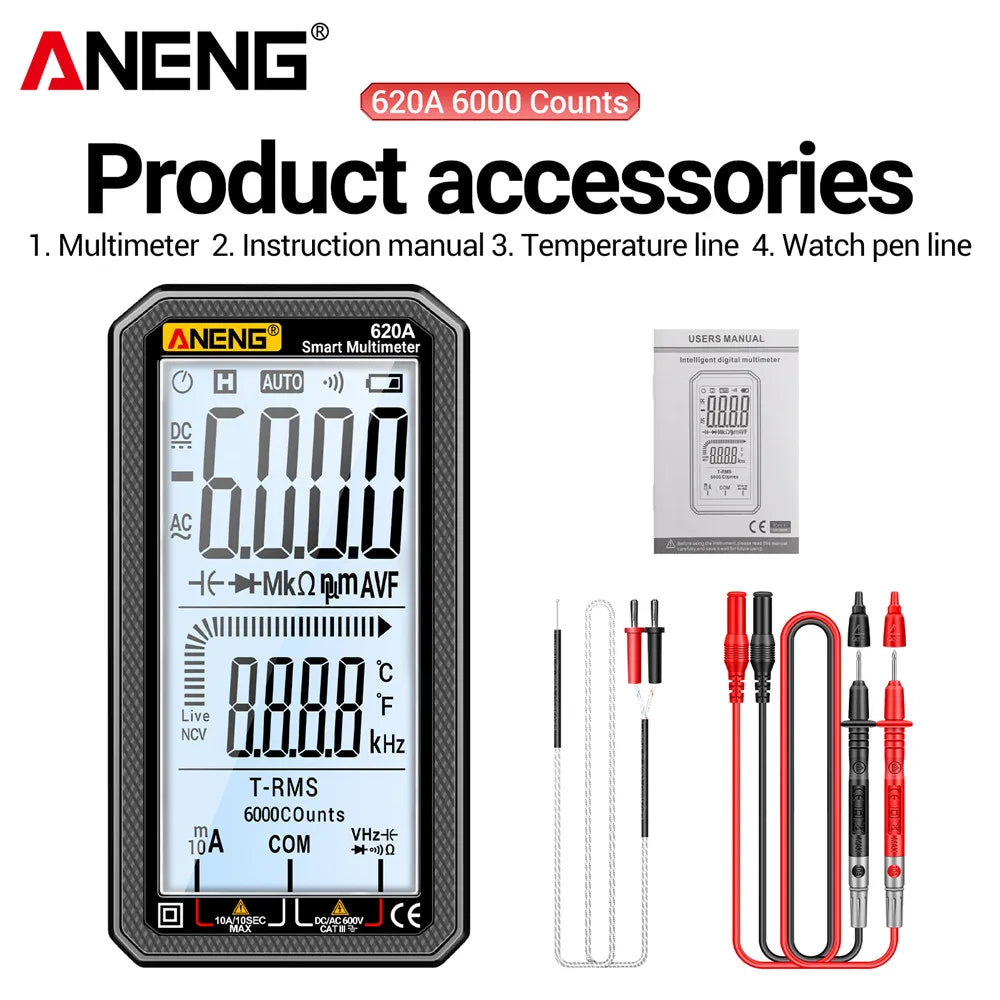

C.Package Include:
According to your choice
