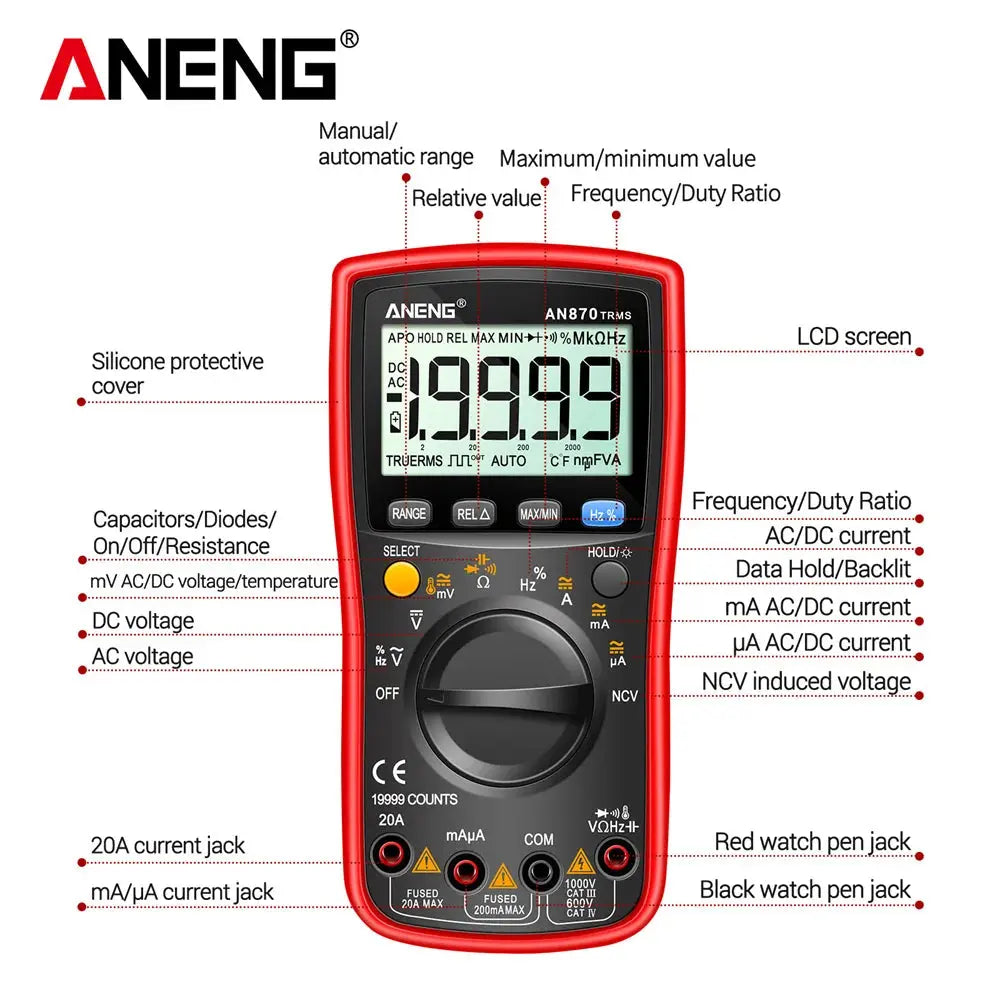

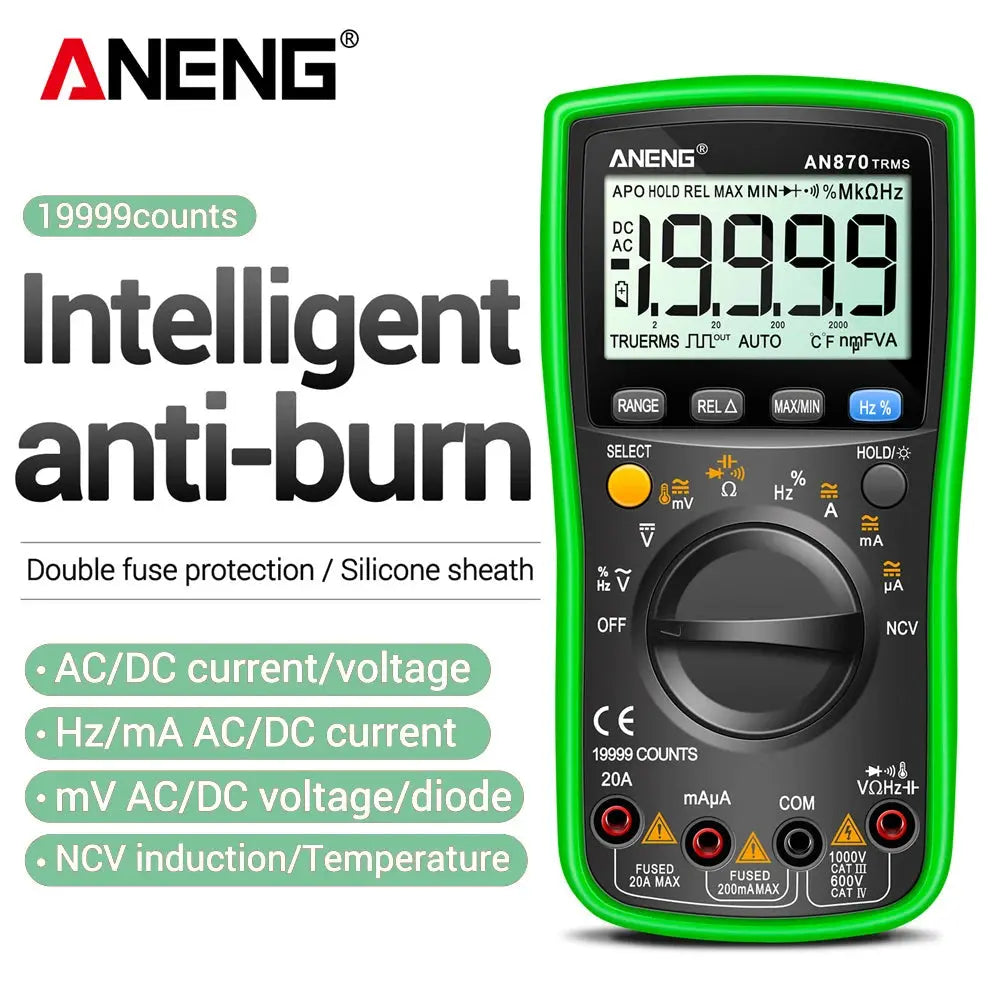

ANENG AN870 Digital Multimeter 19999 Counts True Rms Multimeters Transistor Tester Voltimetro Profesional Capacitance Meter
ANENG AN870 Digital Multimeter 19999 Counts True Rms Multimeters Transistor Tester Voltimetro Profesional Capacitance Meter
Couldn't load pickup availability
SPECIFICATIONS
AC Current: 600uA/6000uA/60mA/600mA/10A
Color: Green / Red
Material: ABS
Battery: AA (not included)
SKU: FKT3162
DC Voltage: 600mV/6V/60V/600V/1000V
Brand Name: ANENG
AC Voltage: 600mV/6V/60V/600V/1000V
Model Number: 870 Digital Multimeter
DC Current: 600uA/6000uA/60mA/600mA/10A
Display Type: Digital display
Measuring Resistance Range: 600/6k /60k /600k /6M /60M
Measuring Capacitance Range: 10nF/100nF/1uF/10uF/100uF/1000uF/10000uF
Origin: Mainland China
DIY Supplies: ELECTRICAL
Dimensions: 26 x 17 x 6 cm
Operating Temperature: 0 - 40 ℃
Is Smart Device: No
Operating Mode: Double integral A/D converter
ANENG Model: AN870
Choice: yes
semi_Choice: yes
ANENG AN870 Profesional Digital Multimeter 19999 Counts True Rms AC/DC Voltage Current NCV Transistor Accurate Auto Range Tester
Introduction

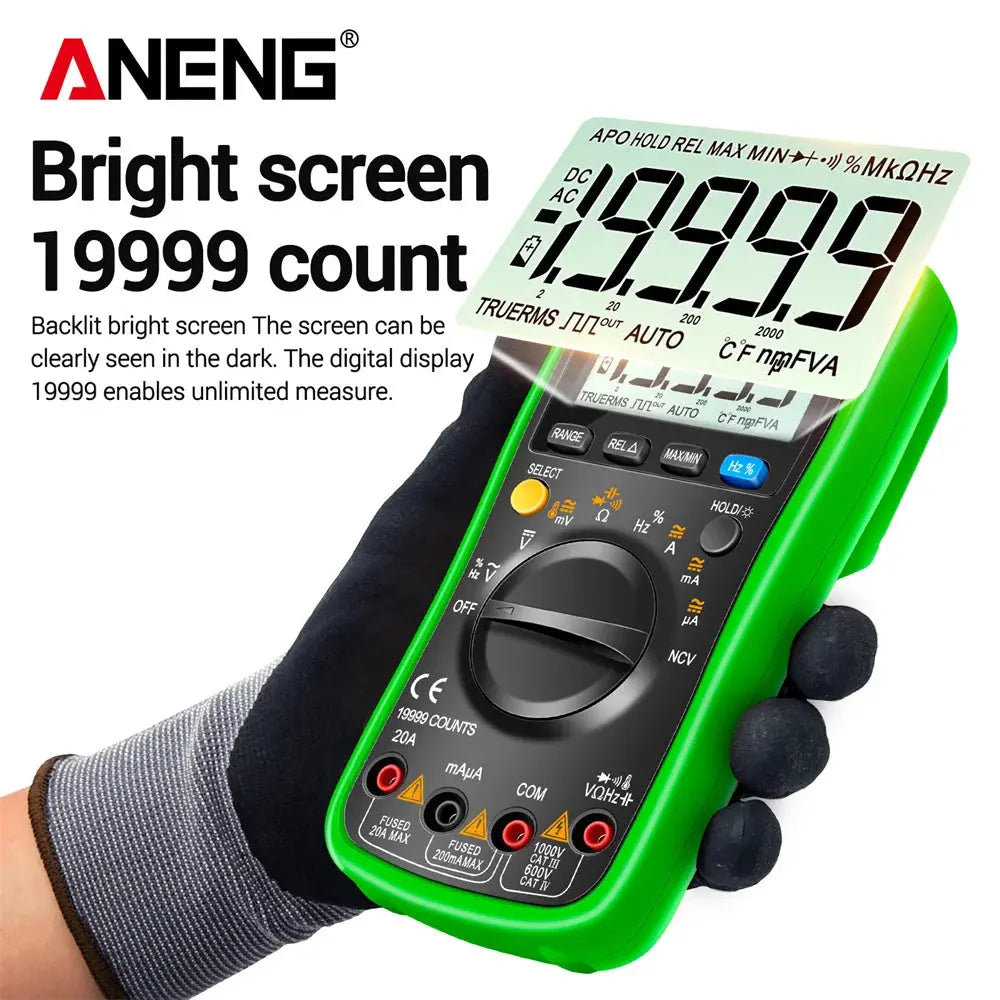

This product is a battery-powered, true-rms, auto-ranging digital multimeter with a 19999 LCD display and a backlight.
B. Safety Information
To avoid possible electrical shock, fire, or personal injury, please read all safety information before you use the product.
(1) Do NOT exceed the "maximum value" indicated in the Specification.
(2) Examine the connection of the test leads and the insulation of the product before measuring voltage higher than 36V DC or 25V AC.
(3) Disconnect the test leads from the circuit before changing the mode.
(4) Misuse of mode or range can lead to hazards, be cautious. "OL" will be shown on the display when the input is out of range.
Function |
Range |
Accuracy |
DC Voltage |
19.999mV/199.99mV/1.9999V/19.999V/199.99V/1000V |
±(0.05％+ 3) |
AC Voltage |
19.999mV/199.99mV/1.9999V/19.999V/199.99V/750V |
±(0.3％+ 3) |
DC Current |
1.9999A /19.999A / 19.999mA /199.99mA /99.99μA /1999.9μA |
±(0.5%+3) |
AC Current |
1.9999A /19.999A / 19.999mA /199.99mA /99.99μA /1999.9μA |
±(0.8%+3) |
Resistance |
199.99Ω |
±(0.5%+3) |
1.9999kΩ/19.999kΩ/199.99kΩ |
±(0.2%+3) |
|
1.9999MΩ/19.999MΩ |
±(1.0%+3) |
|
199.99MΩ |
±(5.0%+5) |
|
Capacitance |
9.999nF |
±(5.0%+20) |
99.99nF/999.9nF/9.999uF/99.99uF/999.9uF |
±(2.0%+5) |
|
9.999mF |
±(5.0%+5) |
|
Frequency |
99.99Hz/ 999.9Hz/ 9.999kHz/ 99.99kHz/ 999.9kHz/ 9.999MHz |
±(1.0%+2) |
Duty Cycle |
1%~99% |
±(1.0%+2) |
Brand Name |
ANENG |
Model |
AN870 |
Display(LCD) |
19999counts |
Ranging |
Auto/Manual |
Meterial |
ABS |
Update Rate |
3Time/Second |
Ture RMS |
yes |
Back Light |
yes |
Date Hold |
yes |
Relative Measurement |
yes |
MAX/MIN |
yes |
Low Battery Alect |
yes |
Auto Power Off |
yes |
Diode |
yes |
Continuity |
yes |
NCV |
yes |

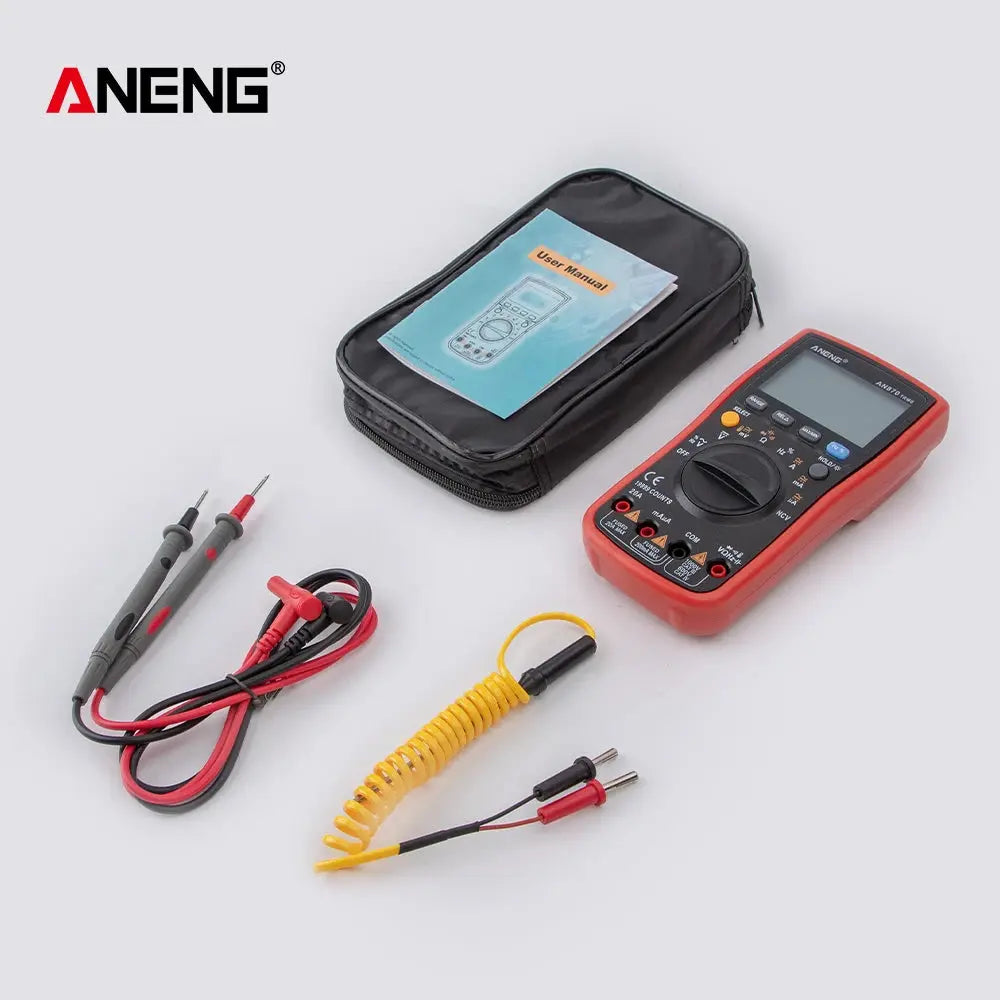

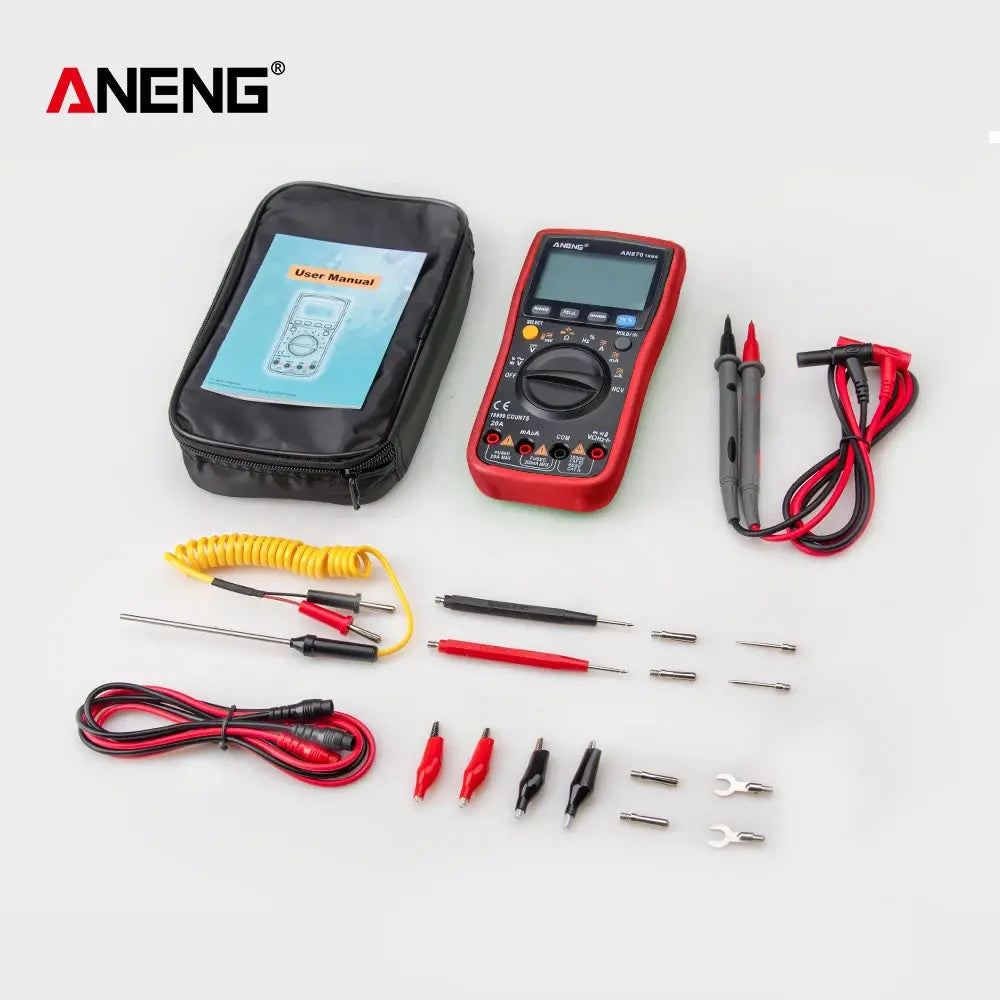

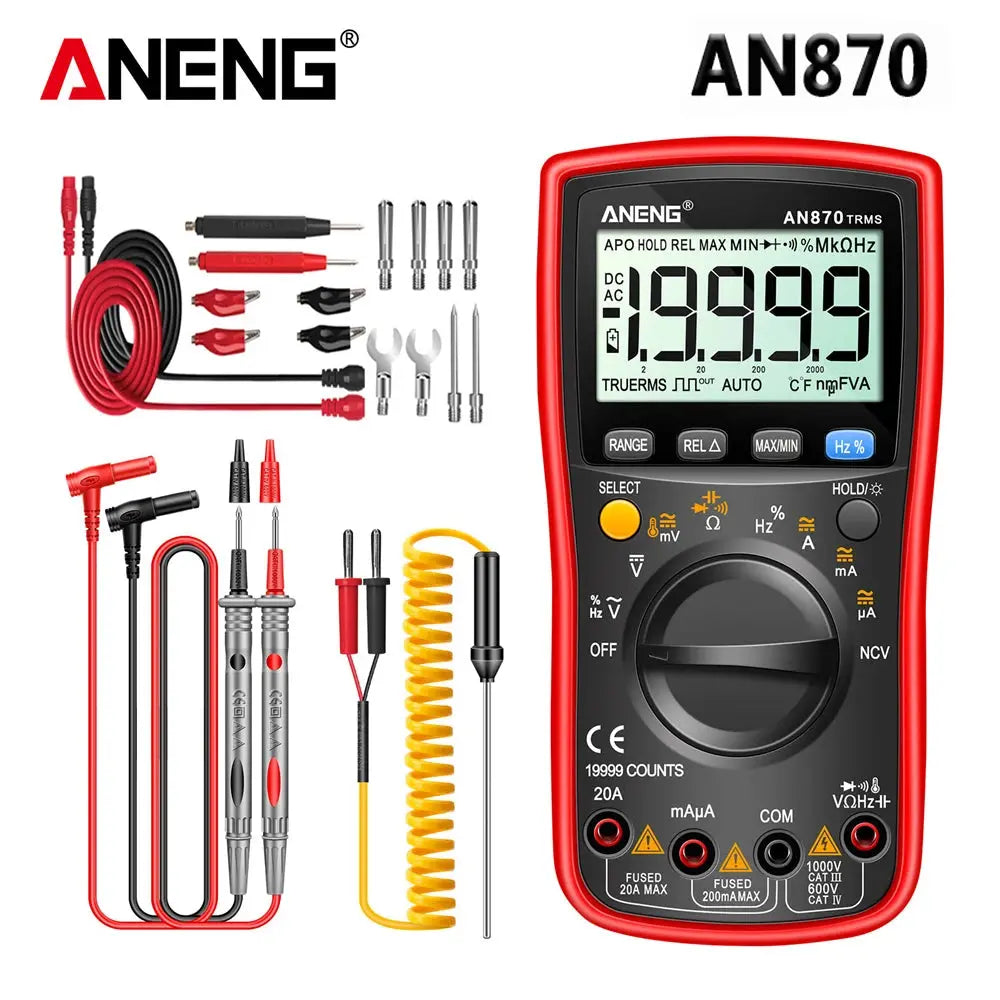

Packaging
1* Multimeter
1* Combination line
1* Instruction manual
1* Standard wiring
1* Temperature measurement line
Warning:
1. Do NOT exceed the "maximum value" indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
